MULTI-FUNCTION SMART TOOL WITH WIFI & BUILT-IN PRINTER - 5 TOOLS IN 1

Features

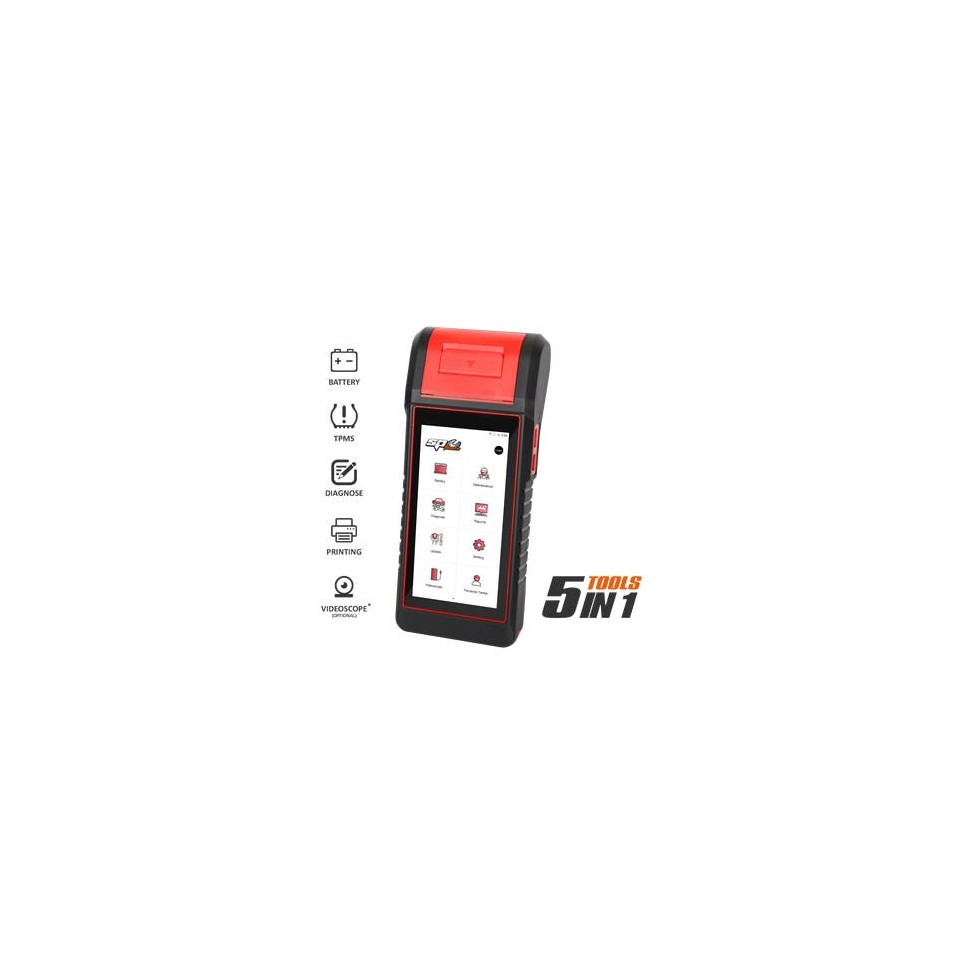

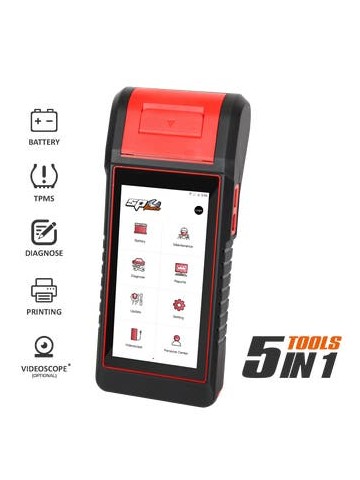

The SP Smart Tool is a powerful 5-in-1 automotive diagnostic and testing device built into a robust Android-based tablet. Designed for modern workshops, it supports full system diagnostics for over 100 vehicle brands across Europe, America, Asia, and China. It offers 20+ maintenance functions, CAN FD, DoIP, and multiple diagnostic protocols. A built-in printer allows technicians to instantly print reports, while 64GB of storage makes it easy to save and compare historical data.

5 Tools in 1

1. Battery Analyzer

• Out-of-car and In-car testing modes

• Tests battery health and cold start performance

• Barcode scanning for quick setup

• Battery matching/reset function

• Supports global standards (CA, CCA, SAE, JIS, DIN, EN, etc.)

• Built-in printer for instant report output

2. TPMS Tester (Tyre Pressure Monitoring System)

• Activates and programs most OEM and universal TPMS sensors

• Reads, copies, and writes sensor IDs

• Supports 315MHz/433MHz sensors

• Displays tyre pressure, temperature, and sensor battery status

• Clears TPMS fault codes and relearns sensors

• Covers 98% of vehicles with TPMS

3. Diagnostic Tester

• Full system scan via OBD (DLC)

• Reads/clears DTCs (generic and OEM-specific)

• Live Data viewing (text, waveform, merged graph)

• Actuation tests for system components

• Pre- and post-repair report comparison

• Diagnostic data recording

• Software and APK updates

4. Vehicle Maintenance

Quick-access dial for common service functions:

• Oil reset, EPB reset, ABS bleeding

• DPF regeneration, throttle reset, injector coding

• TPMS reset, battery maintenance, IMMO, gearbox matching

• Sunroof, suspension, EGR, window, and seat calibration

• NOx reset, AdBlue reset, A/F reset, Stop/Start reset

• Transport mode, coolant bleed, and more

5. Videoscope Support (Optional – SP61173)*

• Forward and side-facing cameras

• Ideal for internal inspection of engines and tight areas

• Requires optional probe attachment

Kit Includes

• SP Smart Tool tablet

• DLC diagnostic cable

• Battery clamp cables

• USB Type-C cable

• 12V auxiliary power cable

• OBD-I adaptor box

• Non-16-pin adaptor kit

• Heavy-duty blow mold carry case

Specifications

• Operating System: Android 10

• Memory: 4GB RAM

• Storage: 64GB

• Display: 5.99" capacitive touch screen (720x1440)

• Camera: 8MP rear

• Wi-Fi: Dual band 2.4GHz/5GHz

• Battery: 4500mAh / 7.6V

• Operating Temp: 0°C to 45°C

• Storage Temp: -10°C to 60°C

Connectivity

• DB15 diagnostic port

• USB Type-A & Type-C ports

• Circular connector for battery tester

• OBD-II and OBD-I (with adaptors)

• Wi-Fi enabled
